ACCESSORIES

Aksesuarlar

ACCESSORIES


  • Web Sunucusu

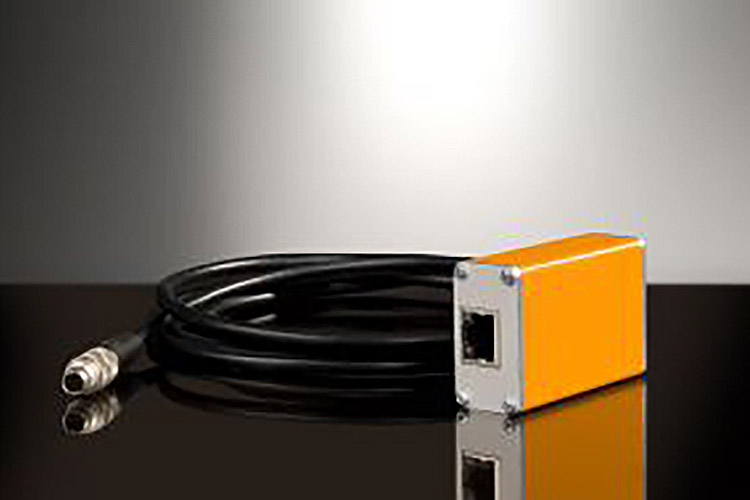

    Web Server

    Mirtest ultrasonic generators can be extended to a webserver module. This offers completely new opportunities such as remote maintenance over the internet, generator operation via the web browser or control via telnet protocol. The webserver is available in two variants : External webserver , Generator integrated webserver !

    • Control of all functions
    • Error memory query including time information
    • Browser based configuration interface
    • No software installation required (Sun JRE 1.5 or higher is required)
    • Configurable IP adress (also DHCP / BootP support)
    • Connection: Via optional user port to generators
    • Cable connection: 2m, AWG 26, IP67
    • Webserver: Integrated configuration interface via browser Telnet interface for generator control
    • Dimensions (WxHxD): 42 x 22 x 70 mm
    • Weight: Approx. 250g
    • Operating temperature: min. -10°C to max. +40°C non-condensing
  • Çıkarılabilir Cihaz

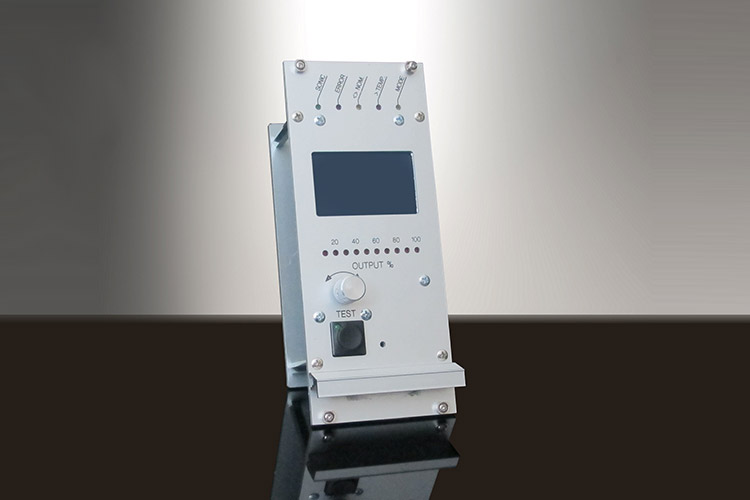

    Detachable Operating Device

    The detachable operating interface is intended for connecting to generators without implemented control panel or LCD display. It is particularly suitable when the generator configuration must be changed infrequently. Since a detachable operating interface can be used with multiple generators, it results in a lower price when buying several generators.

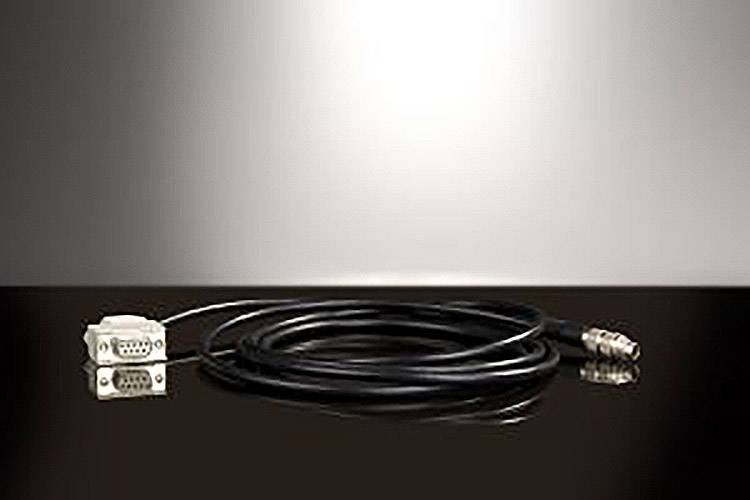

  • RS232 Interface

    RS232 Interface

    Mirtest jgenerators can be controlled and monitored using an interface cable via an RS232 interface. The simple and very powerful control protocol is described in a enclosed documentation and gives you full control of the generator.
